HDPE Plastic Waterproofing Drainage Board Waterproof Wall Boards

Name: HDPE Plastic Waterproofing Drainage Board Waterproof Wall Boards
Brand: zhongloo
Price: 0.58 USD

Quality HDPE Plastic Waterproofing Drainage Board Waterproof Wall Boards wholesale

Brand Name : zhongloo

Model Number : PSB

Place of Origin : China

MOQ : 1000 Per square meter

Price : USD 0.58-1.45 per square meter

Payment Terms : L/C, T/T

Supply Ability : 10000 square meter

Delivery Time : 8-12 work days

Packaging Details : Customer's Request

Product name : Drainage Board

Material : HDPE

Application : Roof

Color : Black Green

package : in roll

Function : Waterproof

Contact Now

Waterproofing Drainage Board Waterproof Wall boards

Product Deacription

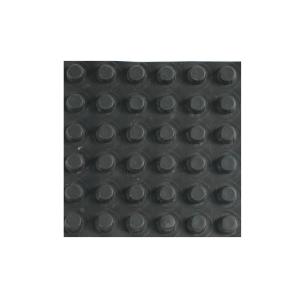

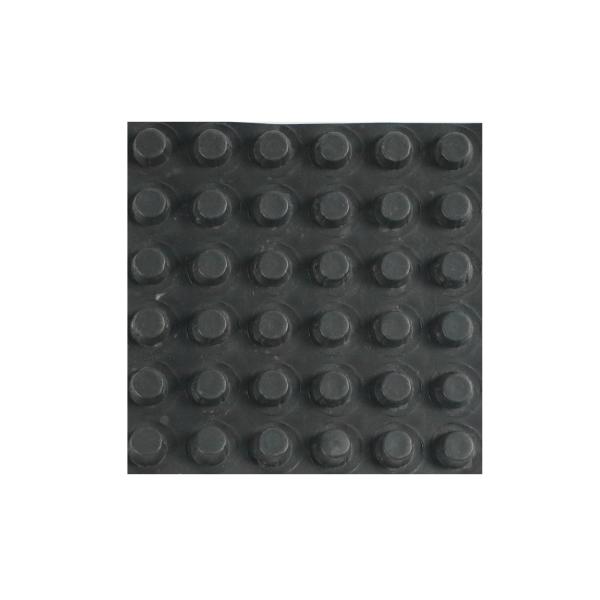

Drainage Board with holes is made from high density polyethylene plastic and it is a kind of geomembrane with dimples on the surface. The dimples can be in cylinder and semi cone shape. It could also be coated by non woven geotextile. The liquid and gas can go through freely between dimples.

Technical specification

Plastic drainage board
item		Specification
Tension at 10% elongation (N/100mm) ≥		350
Maximum pulling force (N/100mm) ≥		600
Elongation at break /% ≥		25
Tear performance/N ≥		100
Compression performance	Maximum strength when compression rate is 20%/KPa ≥	150
	Extreme compression performance	No break
Low temperature flexibility		-10℃ no cracks
Heat aging	Tensile retention at 10% elongation≥	80
	Maximum tensile retention rate/(N/100mm) /% ≥	90
	Elongation at break retention rate /% ≥	70
	Maximum strength retention rate when the compression rate is 20% ≥	90
	Extreme compression performance	No break
	Low temperature flexibility	-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥		10

Product Usages

1. Forest Park engineering: garage roof greening, roof garden, roof greening, football field, golf course, bathing beach engineering, etc.

2. Municipal works: road subgrade, subway tunnel.

3. Construction engineering: upper or lower layer of building foundation, internal and external walls of basement, seepage prevention and heat insulation layer of roof, etc. 4. Traffic engineering: road, railway subgrade, embankment and slope protection layer, etc.
